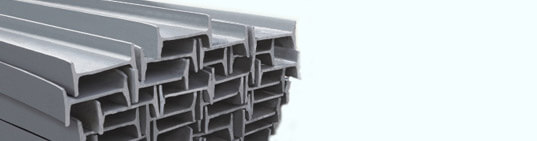

Mild Steel I Beam

MS I Beams


Sankalp Forge & Alloys supplies a wide range of Mild Steel (MS) I Beams. MS I Beams are used for manufacturing of truck-trailers, EOT cranes and its Gantry, ship building, factory sheds, conveyors, boilers, agricultural equipment, and many more engineering industries.


MS Beams : 100 x 50mm to 200 x 100mm (Light Wt. /Med. Wt. /STD .Wt.)


Awesome Image

Size in mm Average Weight
KG/MTR KG/FT
100 x 50 STD 8.90 2.70
100 x 50 MED 7.00 2.10
100 x 50 LIGHT 5.30 1.60
125 x 70 STD 13.30 4.05
125 x 70 MED 11.50 3.50
125 x 70 LIGHT 9.00 2.70
140 x 70 24 7.31
150 x 75 STD 15.00 4.60
150 x 75 LIGHT 13.50 4.10
175 x 85 19.6 6.0
200 x 100 24.20 7.40
Rolling Tolerances
Web
Flange
Sectional weight
Length
up to 200 mm +3 mm / -2 mm above 200 mm ± 3 mm
up to 100 mm ± 2 mm
100 to 125 mm ± 2.5 mm
125 to 250 mm ± 4 mm
± 2.5 %
For fixed length : ± 100 mm

Sankalp Forge & Alloys INDUSTRIES developes specific sections. Specific sizes in any section can be developed for economical and feasible quantity, in Mild Steel, High Tensile, En 8 / En 8D / EN 9 / EN 16 material.
