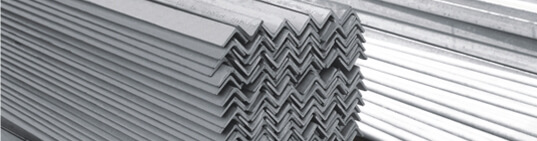

MS Angles
Sankalp Forge & Alloys supplies a wide range of Mild Steel (MS)
Angels. MS Angels are used for manufacturing of truck-trailers, EOT cranes
and Gantry, escalators and elevators,ship building, factory sheds, bus body,
communication and transmission towers, conveyors, boilers, agricultural
equipment, and construction of bridges, scaffolding and many more
fabrication and engineering industries.
MS Equal Angles : 25 x 25 x 3mm to 130 x 130 x 12mm
| Size in mm |
Average Weight |
| KG/MTR |
KG/FT |
| 25 x 25 x 3 |
1.10 |
0.30 |
| 25 x 25 x 4.5 |
1.60 |
0.49 |
| 25 x 25 x 5 |
1.80 |
0.50 |
| 25 x 25 x 6 |
2.10 |
0.60 |
| 30 x 30 x 3 |
1.40 |
0.40 |
| 35 x 35 x 3 |
1.60 |
0.50 |
| 35 x 35 x 4 |
2.10 |
0.60 |
| 35 x 35 x 5 |
2.60 |
0.80 |
| 37 x 37 x 3 |
1.70 |
0.50 |
| 40 X 40 X 3 |
1.80 |
0.055 |
| 40 x 40 x 4 |
2.40 |
0.70 |
| 40 x 40 x 5 |
3.00 |
0.90 |
| 40 x 40 x 6 |
3.50 |
1.10 |
| 45 x 45 x 4 |
2.70 |
0.80 |
| 45 x 45 x 5 |
3.40 |
1.00 |
| 45 x 45 x 6 |
4.00 |
1.22 |
| 50 x 50 x 3 |
2.30 |
0.70 |
| 50 x 50 x 4 |
3.00 |
0.90 |
| 50 x 50 x 5 |
3.80 |
1.20 |
| 50 x 50 x 6 |
4.50 |
1.40 |
| 50 x 50 x 8 |
5.84 |
1.78 |
| 55 x 55 x 4 |
3.30 |
1.00 |
| 55 x 55 x 5 |
4.10 |
1.30 |
| 60 x 60 x 4 |
3.70 |
1.10 |
| 60 x 60 x 5 |
4.50 |
1.40 |
| 60 x 60 x 6 |
5.40 |
1.64 |
| 65 x 65 x 4 |
4.00 |
1.20 |
| 65 x 65 x 5 |
4.90 |
1.50 |
| 65 x 65 x 6 |
5.80 |
1.80 |
| 65 x 65 x 8 |
7.70 |
2.40 |
| 65 x 65 x 10 |
9.40 |
2.90 |
| 65 x 65 x 12 |
11.80 |
3.60 |
| 70 x 70 x 7 |
7.38 |
2.25 |
| 75 x 75 x 5 |
5.70 |
1.70 |
| 75 x 75 x 6 |
6.80 |
2.10 |
| 75 x 75 x 8 |
8.90 |
2.70 |
| 75 x 75 x 10 |
11.0 |
3.40 |
| 75 x 75 x 12 |
13.1 |
4.00 |
| 80 x 80 x 6 |
7.20 |
2.19 |
| 80 x 80 x 7 |
7.90 |
2.90 |
| 80 x 80 x 8 |
9.60 |
2.90 |
| 90 x 90 x 6 |
8.20 |
2.50 |
| 90 x 90 x 7 |
9.50 |
2.90 |
| 90 x 90 x 8 |
10.80 |
3.10 |
| 90 x 90 x 10 |
13.40 |
4.10 |
| 98 x 98 x 9.5 |
13.09 |
3.99 |
| 100 x 100 x 6 |
9.20 |
2.80 |
| 100 x 100 x7 |
10.7 |
3.30 |
| 100 x 100 x 8 |
12.10 |
3.70 |
| 100 x 100 x 10 |
14.90 |
4.50 |
| 100 x 100 x 12 |
17.70 |
5.40 |
| 110 x 110 x 8 |
13.40 |
4.08 |
| 110 x 110 x10 |
16.50 |
5.03 |
| 110 x 110 x 12 |
19.6 |
5.97 |
| 130 x 130 x 8 |
15.9 |
4.85 |
| 130 x 130 x 10 |
19.7 |
6.01 |
| 130 x 130 x 12 |
23.4 |
7.13 |
MS Unequal Angles: 45 x 30 x 4/5
|
Size in mm |
Average Weight |
| KG/MTR |
KG/FT |
| 45 x 30 x
4 |
2.23 |
0.68 |
| 45 x 30 x
5 |
2.75 |
0.80 |
|
Rolling Tolerances
|
|
Leg
length
|
Sectional
weight
|
Length
|
|
Up to 45 mm : ±
1.5 mm
45 mm to 100 mm : ± 2 mm
above 100 mm : ± 2 %
|
3 mm thickness
: ± 5 %
Over 3 mm thickness :+5/-3%
|
For fixed length
: ± 100 mm
|
|
Sankalp Forge & Alloys INDUSTRIES developes
specific sections. Specific sizes in any section can be developed for
economical and feasible quantity, in Mild Steel, High Tensile, En 8 / En 8D
/ EN 9 / EN 16 material.
